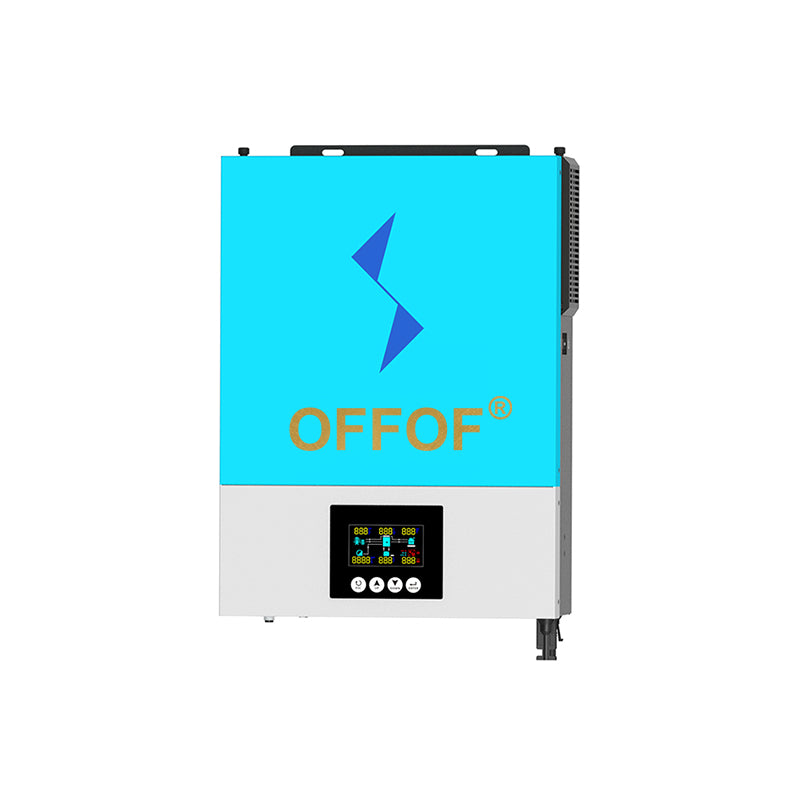

3.6KW 4.2KW 6.2KW MPPT Solar Inverter High PV Hybrid Solar Inverter On Off Grid AC To DC 230Vac WIFI Controller 50-60Hz
3.6KW 4.2KW 6.2KW MPPT Solar Inverter High PV Hybrid Solar Inverter On Off Grid AC To DC 230Vac WIFI Controller 50-60Hz
常规价格
$699.00 USD
常规价格
$900.00 USD
促销价
$699.00 USD
单价
单价
含税费。
无法加载取货服务可用情况
Key Features:
▲Pure sine wave solar inverter(on/off Grid)
▲Output power factor 1.0
▲WIFI&GPRS available for IOS and Android
▲Inverter running without battery
▲One-key restoration to factory Settings
▲Built-in Lithium battery automatic activation
▲Built-in 120A(for 3.6KW/6.2KW)140A(for 4.2KW)
▲MPPT:Max 6200W(for 3.6KW/6.2KW/4.2KW),max6500W(for 6.2KW)solar charge
▲High PV input voltage range(90~500VDC)

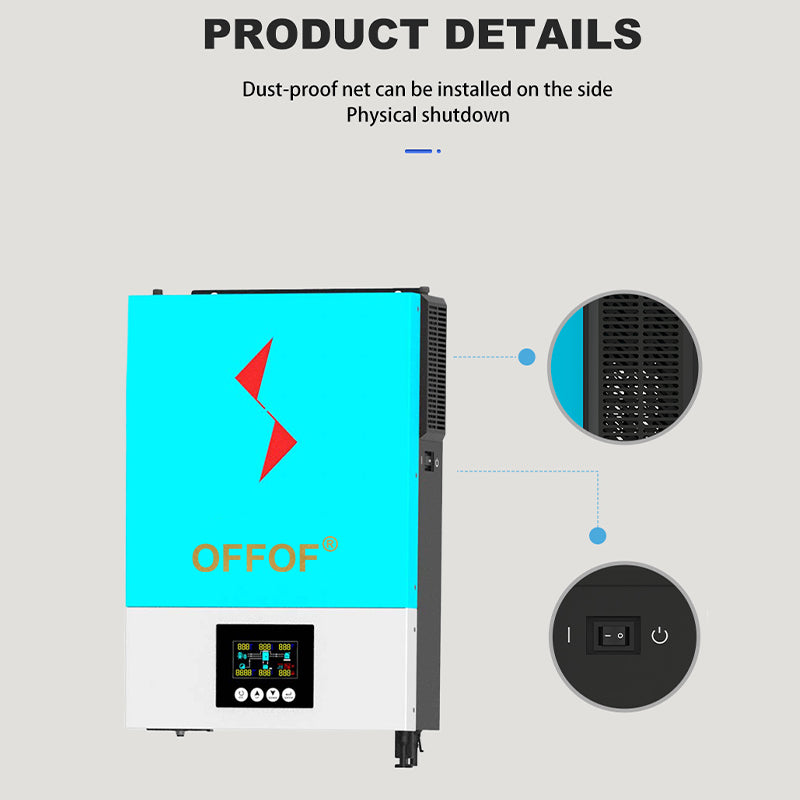

▲Built-in anti-dusk kit for harsh environment
▲Smart battery charge design to optimize battery life
▲Dual Output(V2.0)
▲WIFI&GPRS available for IOS and Android
▲Inverter running without battery
▲One-key restoration to factory Settings
▲Built-in Lithium battery automatic activation
▲Built-in 120A(for 3.6KW/6.2KW)140A(for 4.2KW)
▲MPPT:Max 6200W(for 3.6KW/6.2KW/4.2KW),max6500W(for 6.2KW)solar charge
▲High PV input voltage range(90~500VDC)
▲Built-in anti-dusk kit for harsh environment
▲Smart battery charge design to optimize battery life
▲Dual Output(V2.0)
Specification：
|
OFFOF Model
|
NM-IV-3.6KW PLUS
|
NM-IV-4.2KW PLUS
|
NM-IV-6.2KW PLUS
|
|
Phase
|
1-Phase
|
||
|
Maximum PV Input Power
|
6200W
|
6200W
|
6500W
|
|
Rated Output Power
|
3600W
|
4200W
|
6200W
|
|
Maximum Solar Charging Current
|
120A
|
140A
|
120A
|
|
GRID-TIE OPERATION
|
|||
|
PV Input(DC)
|
|||
|
Nominal DC Voltage/Maximum DC Voltage
|
360VDC/500VDC
|
||
|
Start-up Voltage/Initial Feeding Voltage
|
90VDC/120VDC
|
||
|
MPPT Voltage Range
|
90VDC~450VDC
|
||
|
Number of MPPT/Max Input Current
|
1/27A
|
||
|
GRID OUTPUT(AC)
|
|||
|
Norminal Output Voltage
|
220/230/240VAC
|
||
|
Output Valtage Range
|
195.5~253VAC
|
||
|
Norminal Output Current
|
15.7A
|
18.2A
|
27.0A
|
|
Power Factor
|
>0.99
|
||
|
EFFICIENCY
|
|||
|
Max Conversion Efficiency(Solar to AC)
|
98%
|
||
|
TWO LOAD OUTPUT POWER(V2.0)
|
|||
|
Full Load
|
3600W
|
4200W
|
6200W
|
|
Maximum Main Load
|
3600W
|
4200W
|
6200W
|
|
Max Second Load(battery mode)
|
1200W
|
1400W
|
2067W
|
|
Main Load Cut Off Voltage
|
22VDC
|
22VDC
|
44VDC
|
|
Main Load Return Voltage
|
24VDC
|
24VDC
|
48VDC
|
|
OFF-GRID OPERATION
|
|||
|
AC Input
|
|||
|
AC Start-up Voltage/Auto Restart Voltage
|
120-140VAC/180VAC
|
||
|
Acceptable Input Voltage Range
|
90-280VAC or 170-280VAC
|
||
|
Maximum AC Input Current
|
30A
|
30A
|
40A
|
|
Nominal operating frequency
|
50/60Hz
|
||
|
Surge power
|
7200W
|
8400W
|
12400W
|
|
BATTERY MODE OUTPUT(AC)
|
|||
|
Nominal Output Voltage
|
24VDC
|
24VDC
|
48VDC
|
|
Output Waveform
|
Pure sine wave
|
||
|
Efficiency(DC to AC)
|
94%
|
||
|
BATTERY&CHARGER
|
|||
|
Nominal DC Voltage
|
24VDC
|
24VDC
|
48VDC
|
|
Maximum Solar Charging Current
|
120A
|
140A
|
120A
|
|
Maximum AC Charging Current
|
100A
|
||
|
PHYSICAL
|
|||
|
Dimension,D*W*H(mm)
|
420*310*110
|
||
|
Net Weight(Kgs)
|
10
|
11
|
11
|
|

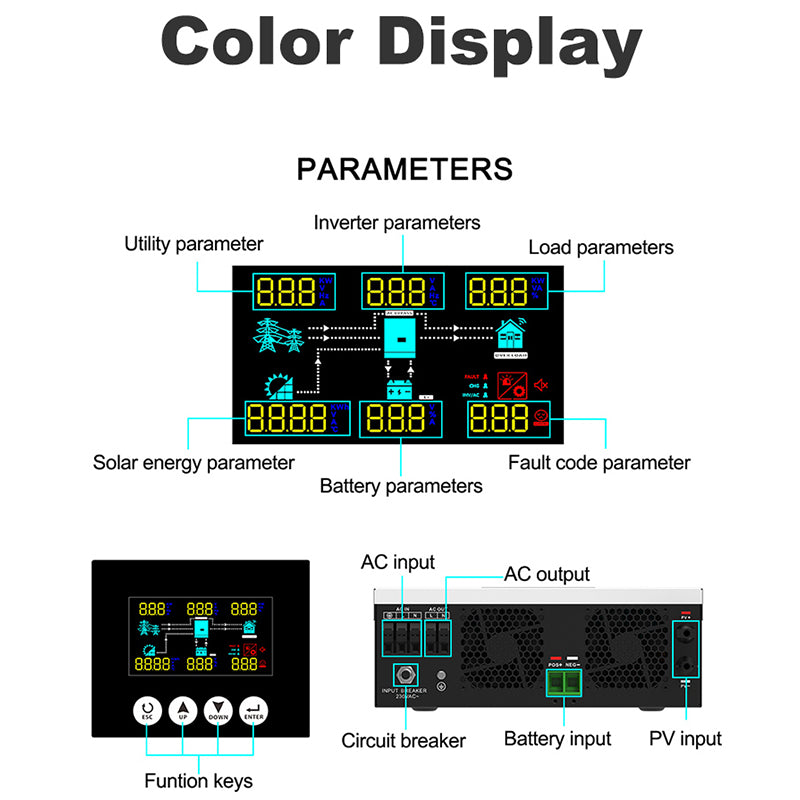

INTERFACE
|
|||
|
Communication Port
|
RS232/WiFi/Remove LCD/GPRS
|
||
