Solar Inverter MPPT 3500W-5500W 48vdc 230Vac Off Grid Hybrid Solar Inverter With Inbuilt 110A MPPT Solar Controller Without Battery Functions WIFI
Solar Inverter MPPT 3500W-5500W 48vdc 230Vac Off Grid Hybrid Solar Inverter With Inbuilt 110A MPPT Solar Controller Without Battery Functions WIFI
常规价格
$599.00 USD
常规价格
$659.00 USD
促销价
$599.00 USD
单价
单价
含税费。
无法加载取货服务可用情况

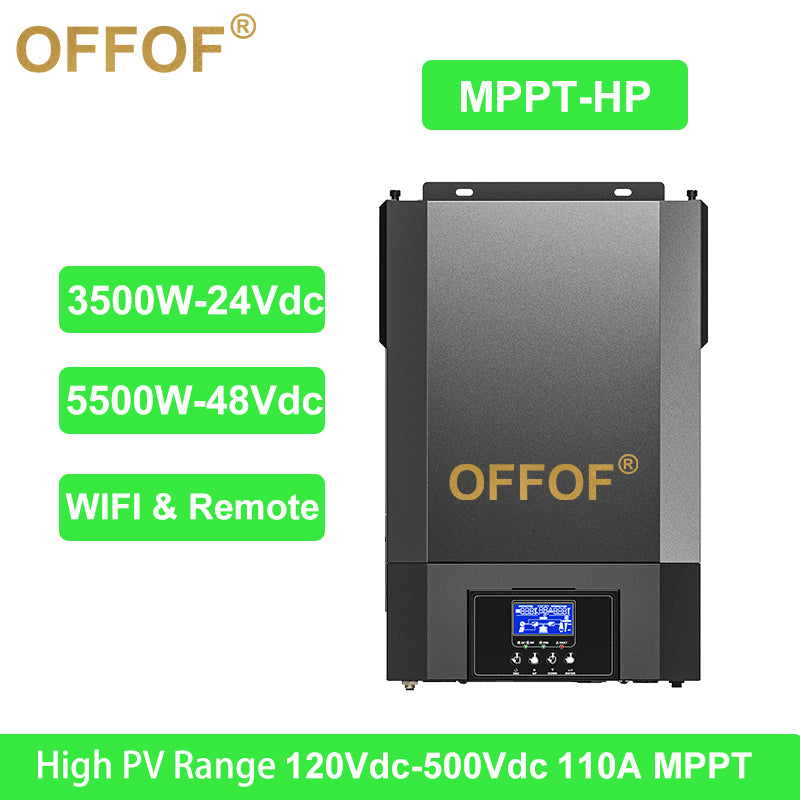

OFFOF 5500w(3500Watt) 48vdc 230vac off grid hybrid solar inverter with inbuilt 110A MPPT solar controller

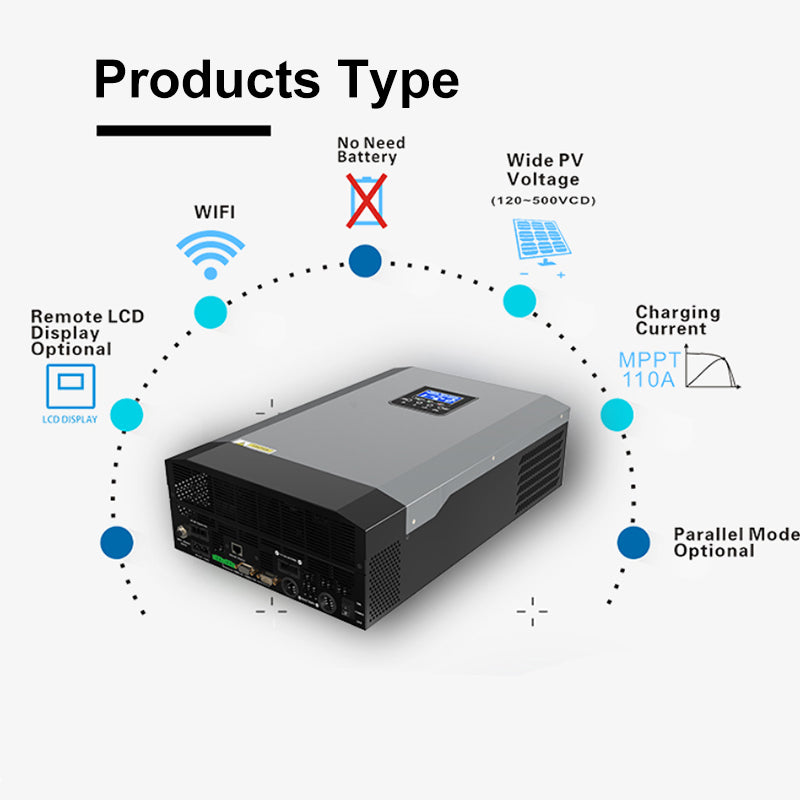

Feature
• High efficiency pure sine wave inverter(PF=1);
• Wide PV input range(120Vdc--500Vdc)110A MPPT SCC;
• Surges to 2X continuous power for 5 seconds for motor loads.

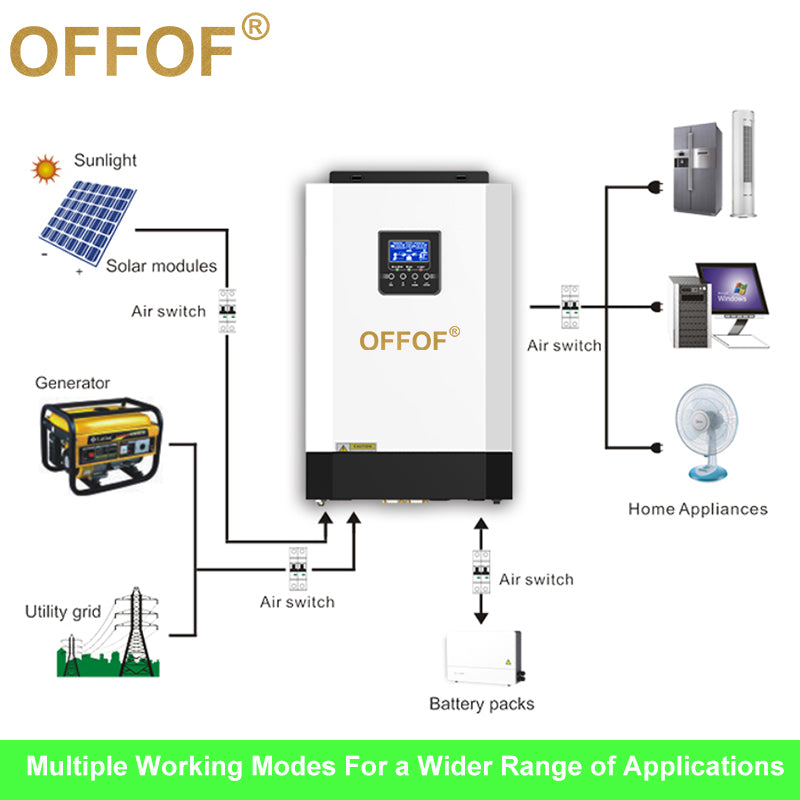

• Intelligent functionality enables utility and solar input prioritication
• Wide utility input range(90Vac--280Vac)for unreliable grid even
• In the most challenging environments.
• Field serviceable with replacement boards and spare parts.

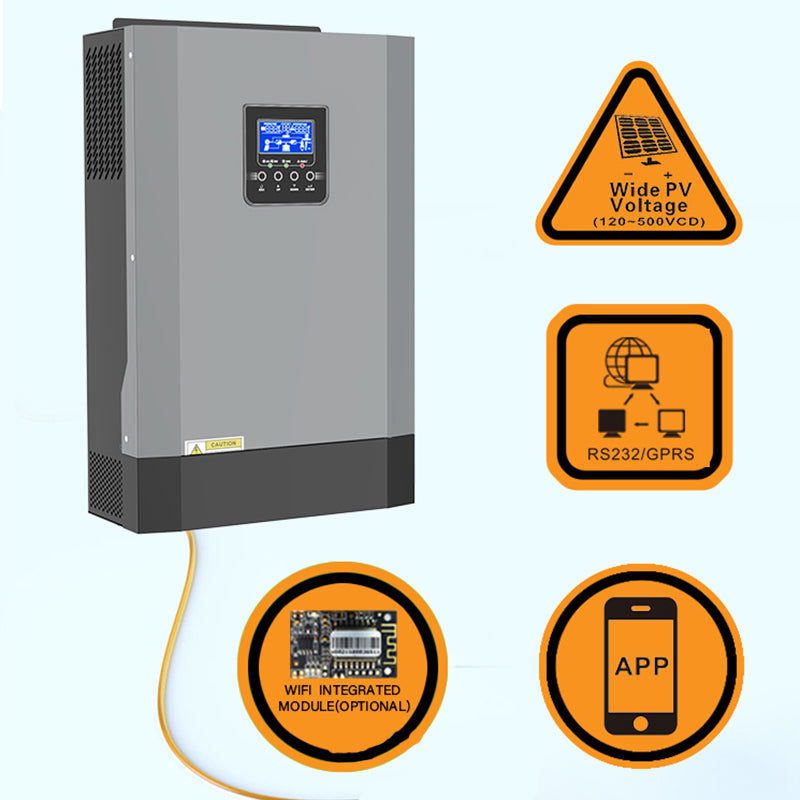

• Monitor,troubleshoot,or communication with USB/RS232.
• System configures quickly into compact,wall-mounted system.
• Working without batteries in sun day

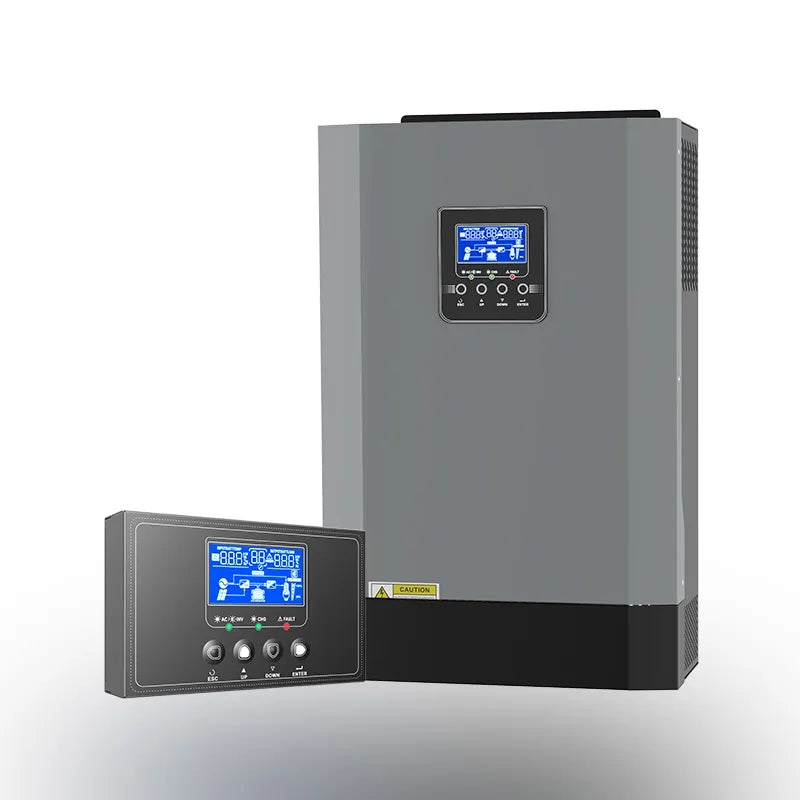

• Remote LCD panel(Optional)
Product Parameters

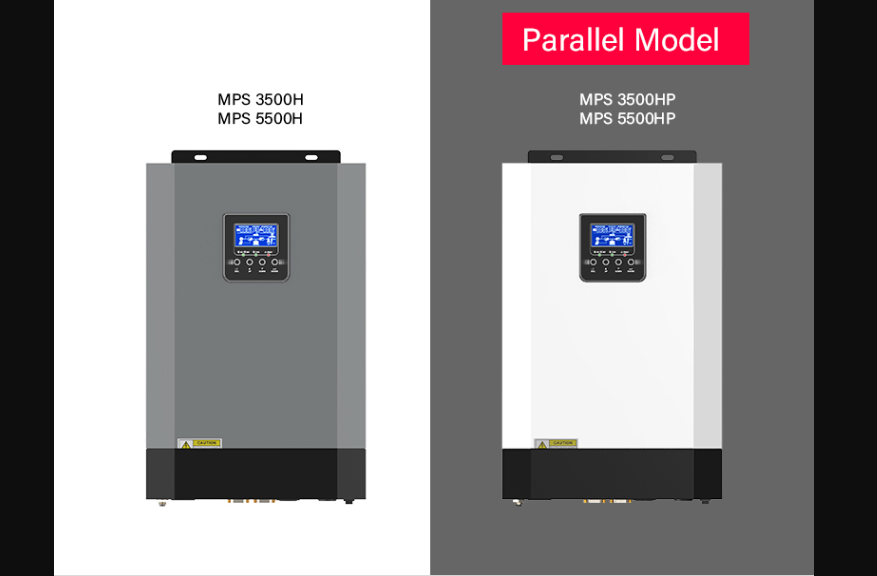

| Model No. | 3500H/MPS 3500HP | 5500H/MPS 5500HP | |
| Rated power | 3500VA /3500W | 5500VA /5500W | |
| Input | voltage | 230VAC | |
| selectable voltage range | 170-280VAC(For Personal Computers) 90-280Vac(For Home Appliances) | ||
| Frequency range | 50Hz/60Hz(Auto Sensing) | ||
| Output | AC voltage regulation (Batt.mode) | 230VAC ±5% | |
| Surge power | 7000VA | 11000VA | |
| Efficiency (peak)PV to INV. | 97% | ||
| Efficiency (peak)Battery to INV. | 94% | ||
| transfer time | 10 ms(For Personal Computers);20ms(For Home Appliances) | ||
| waveform | Pure sine wave | ||
| Battery&AC charger | battery voltage | 24VDC | 48VDC |
| floating charge voltage | 27VDC | 54VDC | |
| overcharge protection | 33VDC | 63VDC | |
| maximum charge current | 80A | 80A | |
| Solar charger | MAX PV array power | 5000W | 6000W |
| MPPT range@ operating voltage | 120~450VDC | ||
| maximum PV array open circuit voltage | 500VDC | ||
| maximum charging current | 110A | ||
| maximum efficiency | 98% | ||
| Physical | Dimension, D*W*H(mm) | 472*297*129 | |
| Net weight (kgs) | 13 | 14 | |

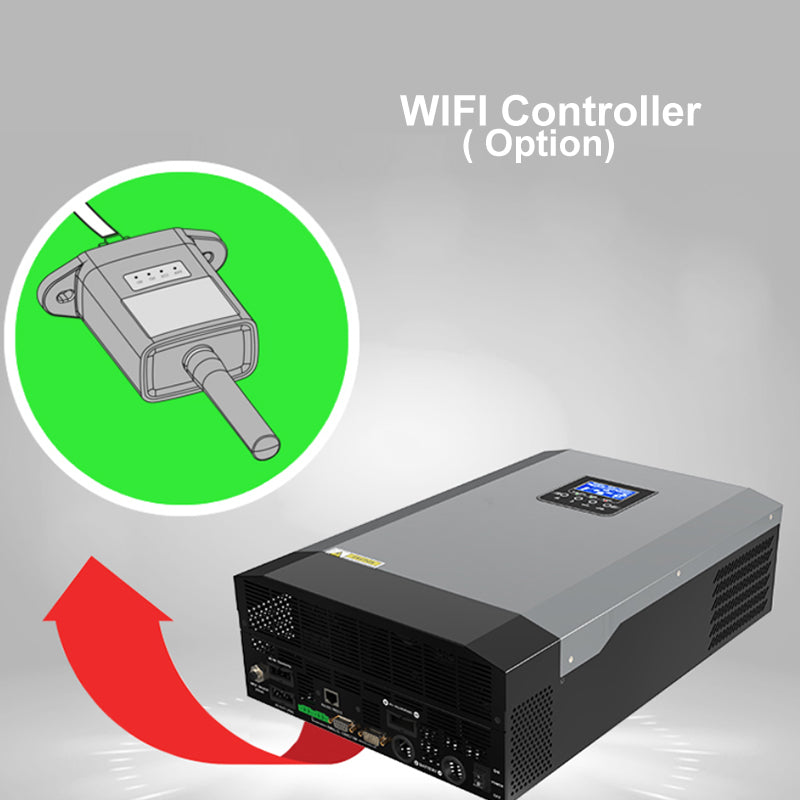

| Communication interface | RS485/RS232(Standard) LCD remote/WIFI(Optional) | ||
| operating Environment | humidity | 5% to 95% Relative Humidity(Non-condensing) | |
| operating temperature | 0℃ to 55℃ | ||
| storage temperature | -15℃ to 60℃ | ||
