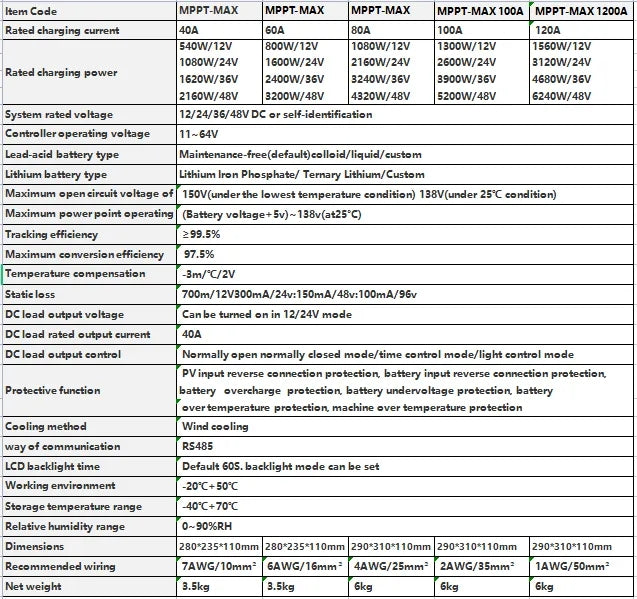

Type: MPPT 12V/24V/48V Auto

40A / 60A / 80A / 100A / 120A

Battery type: Lead acid battery, lithium battery, lithium iron battery

Application: Charger Controller, Solar Working Station, Lighting Controller, Voltage Controller, Solar System Controller, Charger controller, Solar system controller

Work Time (h): 24H

Certificate: ROHS,CE

Warranty: 1 Year

MPPT Voltage: 11V < operating voltage < 64V

Charge way: Constant voltage, constant current,Floating charge

Operating temperature: -20℃~+50℃

Storage temperature: -40℃~+70℃

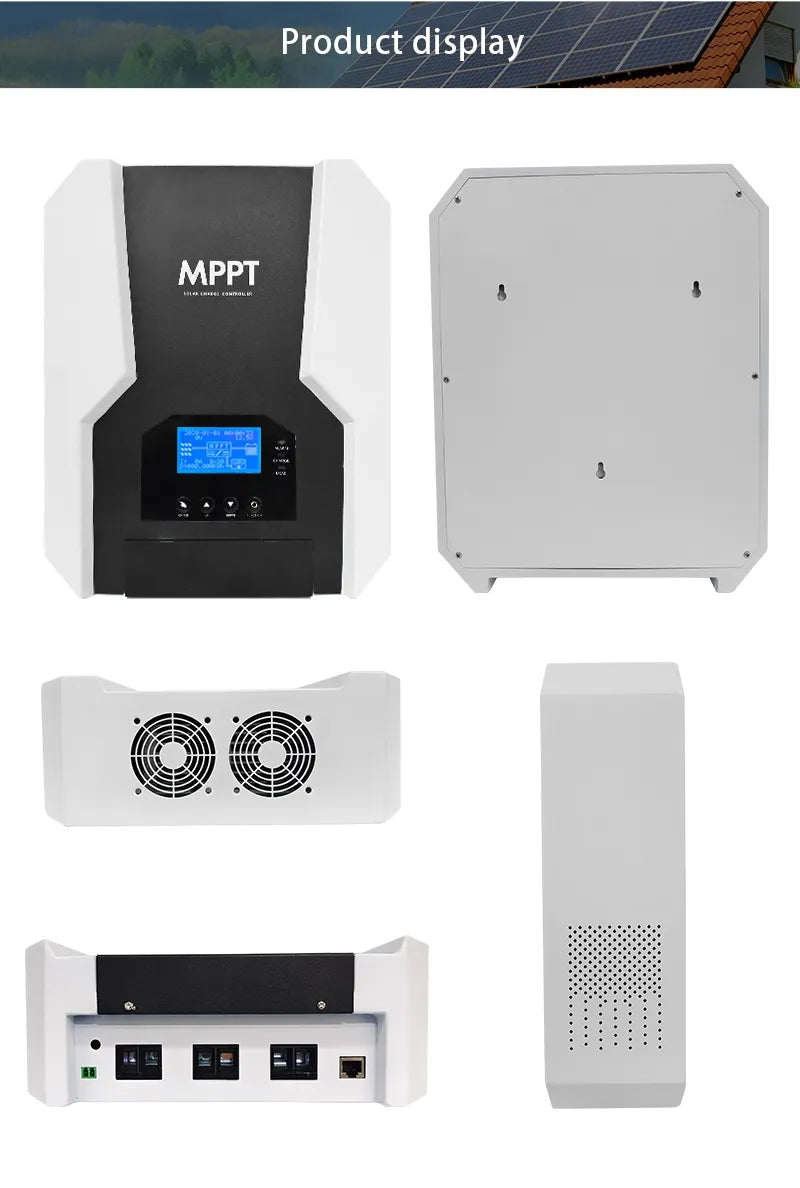

MPPT Solar Charge Controller 12V/24V/36V/48V DC Automatically Identifying System Solar Panel Regulator

 * MPPT solar charge controller advanced MPPT technology & ultra-fast tracking speed, with tracking efficiency no less than 99.5%.  Suitable for Lead Acid battery,  Lithium Ion Lifepo4 Battery.

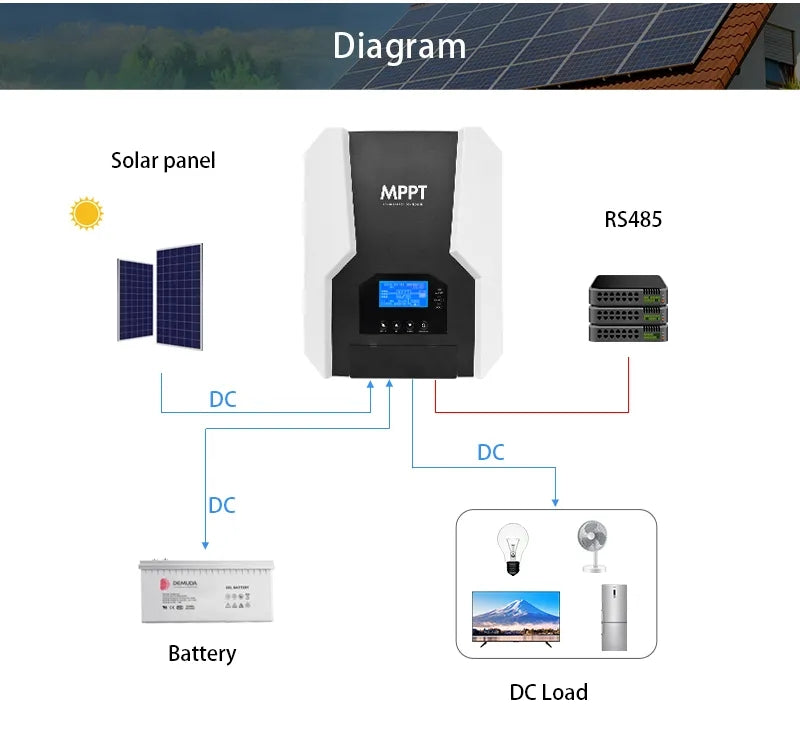

*  With the adaptive three-stage charging mode based on digital control circuit, MPPT Max controllers can effectively  prolong the life-cycle of battery and significantly improve the system performance. The load, utility or generator auto-    control relays make it easy to compose the hybrid power system.

*  All-around electronic protections, including overcharging, over discharging, and PV reverse polarity protection, effectively  ensure the safer and more reliable operation of the solar system for a longer service time. Battery temperature compensation, real-time energy recording and statistical function, automatic over-temperature power reduction function.

 *  Wide range of maximum power point operating voltage, improved photovoltaic module utilization, rated charging power & charging current double automatic limiting function.

 * MPPT Solar Charger Controller supports up to 8 charging in parallel to expand system and meet with different monitoring requirements, so that can be widely used for various applications, e.g. solar RV, household system and field monitoring etc.
