MPPT Solar Charge Controller 12V/24V/48V Auto Battery System 10A/20A/30A/40A/50A/60A/80A

Type: MPPT 12V/24V/48V Auto

10A / 20A / 30A / 40A / 50A / 60A / 80A

Battery type: Lead acid battery, lifepo4 lithium battery

Application: Charger Controller, Solar Working Station, Lighting Controller, Voltage Controller, Solar System Controller, Charger controller,solar system controller

Work Time (h): 24H

Max PV Power: 3840W

Max PV Voltage: 80V

Certificate: ROHS,CE,ISO9001,ISO14001

Warranty: 1 Year

MPPT Voltage: 12V < operating voltage < 80V

Charge way: MPPT , Equalization, Float

USB: Dual USB

USB output: 5V/2A USB*2

Operating temperature: -20℃~+40℃

Over discharge Recover: 11.5V/23V/46V

Floatinh Charging Voltag: 14.4V/28.8V/57.6V

Constant Charging: 15V/30V/60V

-------------------------------------------------------------------------

Product description
1. MPPT Controller The charge controller is a solar charge controller with high power point tracking function, which is suitable for solar charging and load charge control of batteries or battery packs.
2. LCD Display Screen: The LCD color screen is adopted, and the control interface, parameter settings, error messages and other content can be displayed at a glance.
3. Six protection functions: overcharge protection, short circuit protection, discharge protection, temperature protection, surge protection, battery protection, safe and protected.

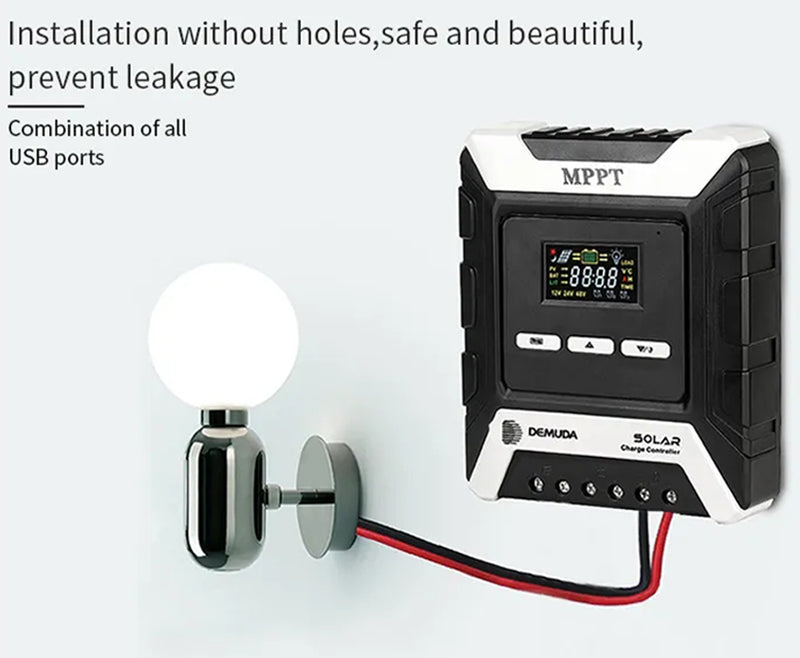

4. Easy Installation The solar controller can be installed without punching, safe and beautiful, and can prevent electric leakage. It also conveniently uses all USB interfaces.
5. Applicable battery types: acid battery, ternary lithium battery, lithium iron phosphate battery. Automatic detection of voltage: 12V 24 48V etc.

Specification:
Item Type:MPPT Solar Controller
Material: aluminium alloy, plastic.
Weight: approx. 565 g / 19.93 oz.
Voltage: 12V-80V.

Use:
Use the installation order:
1. Connect the battery first.
2. Connect to solar panel.
3. Connect the consumers in turn.
For details, please refer to the instruction manual (English language not guaranteed).

Package includes:
1 x solar controller.
2 x side walls.
1 x instruction manual

Note:
Please follow the instructions carefully to avoid damage to the controller.
