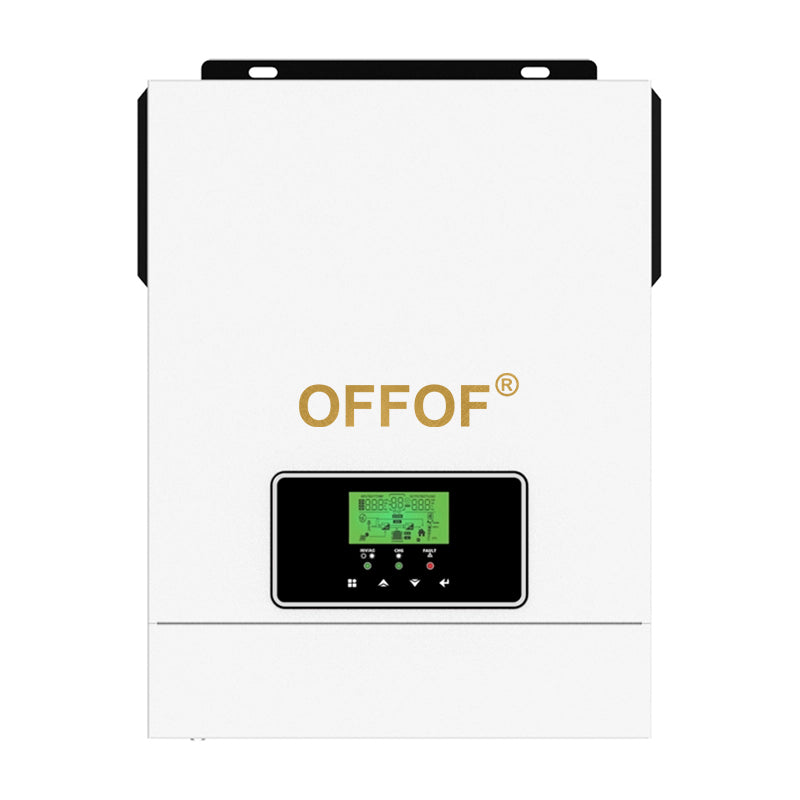

OFFOF MPPT Solar Inverter 2000Watt 3200Watt Hybrid Inverter Support RS232/GPRS/WIFI AC 230V to DC 24V Pure Sine Wave Output Solar Inverter
OFFOF MPPT Solar Inverter 2000Watt 3200Watt Hybrid Inverter Support RS232/GPRS/WIFI AC 230V to DC 24V Pure Sine Wave Output Solar Inverter
Couldn't load pickup availability
Products description:
Pure sine wave solar inverter
Output power factor 1.0
Wifi&GPRS available for IOS and android
Built-in 80A MPPT solar charger
High PV input voltage range(30~450VDC)
Built-in anti-dusk kit for harsh environment
Smart battery charge design to optimize battery life
meet the rich customize needs of customers
Compatibe with lithium battery
Solar energy is provided directly to the load first
|
Model |
SML 2000-12V |
SML 3200-24V |
|
RATED POWER |
2000VA/1600W |
3200VA/3000W |
|
AC Input |
||
|
Voltage |
230VAC |
|
|
Selectable Voltage Range |
170~280VAC(For Personal Computers) 90~280VAC(For Home Appliances) |
|
|
Frequency Range |
50 Hz/60Hz(Auto sensing) |
|
|
AC OUTPUT |
||
|
AC Voltage Regulation |
230VAC±5% |
|
|
Surge Power |
4000VA |
6400VA |
|
Efficiency(Peak)PV to INV |
98% |
|
|
Efficiency(Peak)Battery to INV |
94% |
|
|
Transfer Time |
10 ms（For Personal Computers） 20 ms（For Home Appliances） |
|
|
BATTERY & AC CHARGER |
||
|
Battery Voltage |
12VDC |
24VDC |
|
Floating Charge Voltage |
13.5VDC |
27VDC |
|
Overcharge Protection |
16VDC |
33VDC |
|
Maximum AC Charge Current |
60A |
|
|
SOLAR CHARGER |
||
|
Maximum PV Array Power |
2000W |
3000W |
|
MPPT Range @Operating Voltage |
30~400VDC |
|
|
Maximum PV Array Open Circuit Voltage |
400VDC |
|
|
Maximum Charging Current |
80A |
|
|
PHYSICAL |
||
|
Dimension,D*W*H(mm) |
357*273*95 |
|
|
Net Weight(kgs) |
4 |
5 |
|
Communication interface |
RS232/GPRS/WIFI |
|
|
OPERATING ENVIRONMENT |
||
|
Humidity |
5% to 95% Relative Humidity(Non~condensing) |
|
|
Operating Temperature |
-10~50℃ |
|
